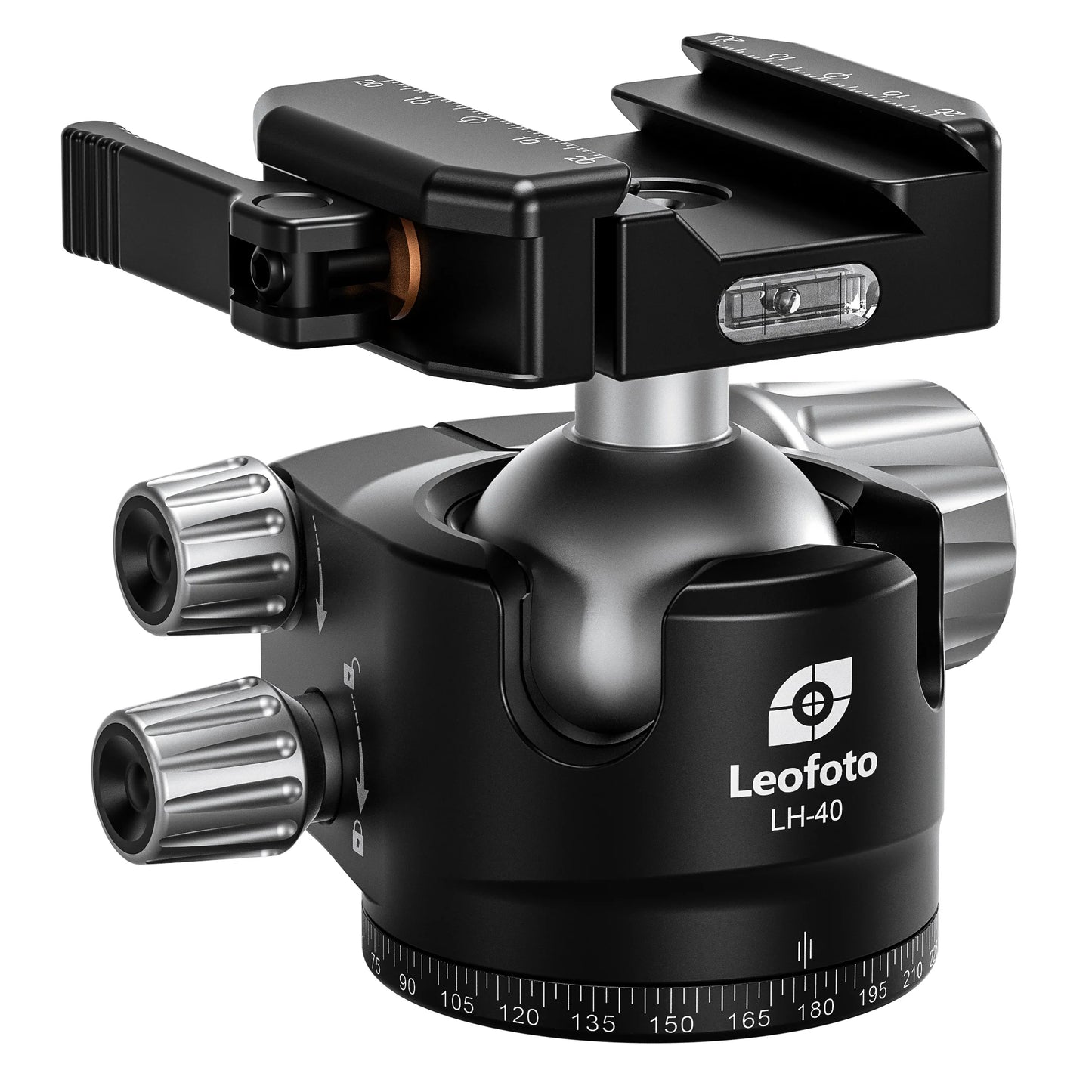

55mm Low Profile Ball Head | Lever-Release Hybrid Clamp | Arca + Picatinny
55mm Low Profile Ball Head | Lever-Release Hybrid Clamp | Arca + Picatinny
Product Name | Clamp Type | Height | Base Diameter | Ball Diameter | Mounting Hole | Weight | Max Load |
---|---|---|---|---|---|---|---|
LH-40LSC | Dual clamp arca/picatinny | 87mm/3.43in | 57mm/2.24in | 40mm/1.57in | UNC3/8" | 502g / 1.11lb | 20kg/44.09lb |
LH-55LSC | Dual clamp arca/picatinny | 102mm / 4.02in | 72mm/2.83in | 55mm/2.17in | UNC3/8" | 787g / 1.74lb | 25kg/55.12lb |
Crafted from high-grade aircraft aluminum and featuring a durable hard-anodized finish, the Leofoto LH-LSC Hybrid Clamp Ball Head Series for Shooting/Hunting is designed to meet the stringent demands of professional shooting and hunting. An over-sized, ergonomic locking knob allows 45-degree tilting in all directions and a 90-degree drop-notch facilitates quick and accurate switching from the horizontal to vertical orientation. A separate tension knob is provided to apply the appropriate pressure that safely corresponds to the weight of your firearm. A third knob loosens and locks the panning base which is laser-engraved with markers every 2.5 degrees from 0 to 360 degrees. The redesigned hybrid clamp allows for both arca and picatinny rails to be attached with an hex screw for adjusting the width of the clamp for any non-standard picatinny and arca sized rails.
- Ergonomic design gives superior handling and unsurpassed reliability
- Dual clamp design to allow both picatinny and arca rails
- Lowest height profile in its class
- Knobs are captive and uniquely shaped, making operation very intuitive
- Micrometer drag tension adjustment is repeatable and absolutely reliable
- Precision panning base is finely laser-engraved at 2.5 degree intervals
- Laser-engraved millimeter scale offers precise centering and positioning within the clamp jaw
- All components are machined from solid aircraft aluminum and hard anodized for maximum durability and minimum weight
